Description

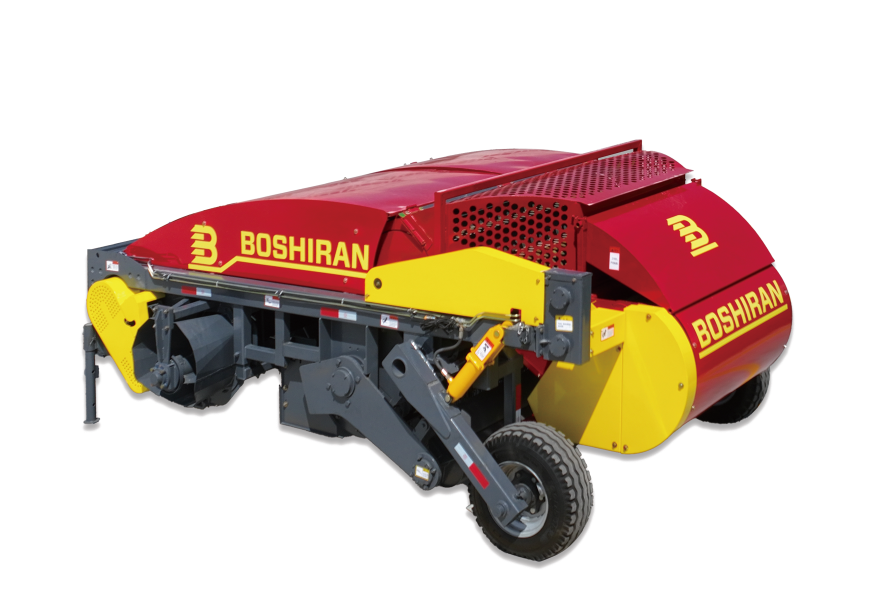

A groundbreaking, multi-process agricultural implement developed by Boshan, designed to simultaneously execute three critical field operations—crop stalk shredding and field incorporation, plastic film residue collection, and residual film baling—in a single-pass workflow, delivering high operational efficiency and unwavering reliability.
Product Advantage
Modular Spring Tines:
Independently detachable for quick repairs or replacements, ensuring minimal downtime.
Simplified Structure:
Reduces mechanical complexity while delivering film pickup efficiency.
Depth-Limiting Device & Gauge Wheels:
Allow precise control of tine or flat shovel penetration, adapting to soil hardness and residue conditions.
Reinforced Collection Mechanism:
Manufactured with high-strength, wear-resistant alloys to extend component lifespan in abrasive soils.
Product Features
- Modular Spring Tines: Independently detachable for quick repairs or replacements, ensuring minimal downtime.
- Simplified Structure: Reduces mechanical complexity while delivering film pickup efficiency.
- Depth-Limiting Device & Gauge Wheels: Allow precise control of tine or flat shovel penetration, adapting to soil hardness and residue conditions.
- Reinforced Collection Mechanism: Manufactured with high-strength, wear-resistant alloys to extend component lifespan in abrasive soils.
- One-Touch Unloading: Activates a hydraulic rear-tipping mechanism for rapid, labor-free residue disposal.
- Impeller Mechanism: Combines centrifugal force and airflow to achieve 98%+ film removal efficiency from soil and debris.
Product Video
Product Parameters
| Serial Number | Item | Unit | Parameters |
| 1 | Model Name | / | 1MSFG-2.1A Residual Film Recycler |
| 2 | Pickup mechanism type | / | Spring-tooth roller type + comb teeth |
| 3 | Matching Power | Kw | 103.0~191.1 |
| 4 | Overall dimensions (Length X Width X Height) | mm | 5700x3150x2050 |
| 5 | Transport Ground Clearance | mm | 300 |
| 6 | Total Volume of Film Collection Box | m3 | 0.22 |
| 7 | Working width | mm | 2100 |
| 8 | Productivity | ㎡/h | 0 4~1.1 |
| 9 | Type of Residual Film Recovery Mechanism | / | Stripper Bar + Round Roller Film Collection and Baling Device |
| 10 | Straw Shredder Type | / | Flail Type |
