Description
Main ParametersBM1004-3NDrive Type4×4 Four-wheel driveEngine Brand / Emission StandardChina IVEngine ModelV35-110C44 4D32R41P1003 (Opt. Optional)Max Torque (N·m) / Speed (rpm)"420/1400-1700 (Quanchai) / 410/1600 (Xinchai)"No. of Cylinders / Displacement (L)4/3.47 (Quanchai) 4/3.17 (Xinchai)Fuel Tank
Product Parameters

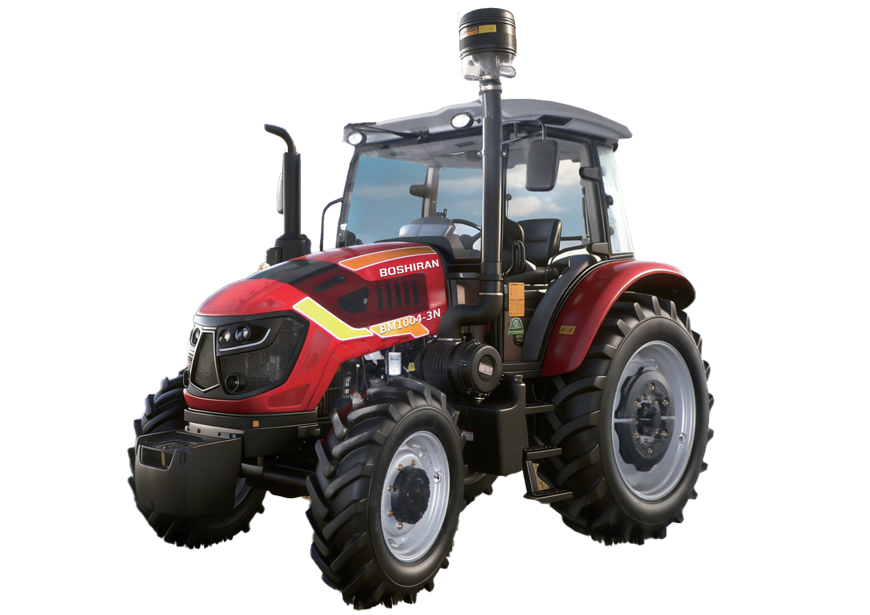

| Main Parameters | BM1004-3N |
| Drive Type | 4×4 Four-wheel drive |
| Engine Brand / Emission Standard | China IV |
| Engine Model | V35-110C44 4D32R41P1003 (Opt. Optional) |
| Max Torque (N·m) / Speed (rpm) | "420/1400-1700 (Quanchai) / 410/1600 (Xinchai)" |
| No. of Cylinders / Displacement (L) | 4/3.47 (Quanchai) 4/3.17 (Xinchai) |
| Fuel Tank Capacity (L) | 85+64 |
| Rated Power / Corresponding Speed (kW/rpm) | "73.5/2300 (Quanchai) / 73.5/2300 (Xinchai)" |
| Rated Power Fuel Consumption (g/kW·h) | ≤235 |
| Aspiration Type | Turbocharged |
| Air Filter | Dry type air filter |
| Torque Reserve | ≥25% |
| Transmission System | |
| Clutch | Dry type / 11-inch / Dual-acting / Independently operated |
| No. of Gears | 12F+12R / 16F+8R |
| Shift Type | Mechanical sliding mesh / Synchromesh gear shift |
| Max Speed | 34.2 km/h |
| Gear Layout | Side-mounted |
| Hydraulic System | |
| Hydraulic Output Flow (L/min) | 45.2 |
| Hydraulic Output Valve Groups | 2-group / 3-group hydraulic output |
| Working Device | |
| Three-point Linkage Category | Category 2 |
| PTO Speed | 540/760, 540/1000 (Optional) |
| Lift Capacity (at 610mm) | ≥17.7 kN |
| Tillage Depth Adjustment | Position control, Float control dual (Forced pressure) |
| Overall Machine Parameters | |
| Overall Dimensions (L×W×H) (mm) | "4230×1875×2680 (Top of ROPS) / 4230×1875×2735 (Top of air filter)" |
| Min Operating Mass (kg) | 3350 (With cab) / 3200 (Without cab) |
| Wheelbase (mm) | 2071 |
| Min Turning Radius (m) | 4.8 |
| Rated Traction Force (kN) | 23 |
| Min Ground Clearance (mm) | 435 (Cylinder support) |
| Air-conditioned Cab | Optional |
| Heated Cab | Optional |
| Front / Rear Wheel Track (mm) | Front: 1275, 1327, 1350, 1370, 1400, 1445, 1470, 1500 (Commonly 1470); Rear stepless adjustable: 1290-1500 (Commonly 1410) |
| Tire Specification | Standard tires: 8.3-24/11-32, 9.5-24/11-32, 9.5-24/14.9-30, 11.2-24/16.9-30 Paddy tires: 8.3-24/11-32, 9.5-24/11-32, 9.5-24/14.9-30 Mid-lug tires: 9.5-24/11-32 |
| Braking and Steering | |
| Brake System | Wet disc brake, hydraulically operated |
| Steering Type | Fully hydraulic steering |
| 4WD Steering Angle (Four-wheel drive) | 40° |
