Description
Main SpecificationsBM1404-6NDrive Type4×4 Four-wheel driveEngine Brand / Emission StandardYuchai National IVEngine ModelYCA05160-T400Max Torque (N·m) / Speed (rpm)610 / 1300-1600No. of Cylinders / Displacement (L)4 / 4.837Fuel Tank Capacity (L)Main tank 180 + Auxiliary tank 50Rated Power / Correspon
Product Parameters

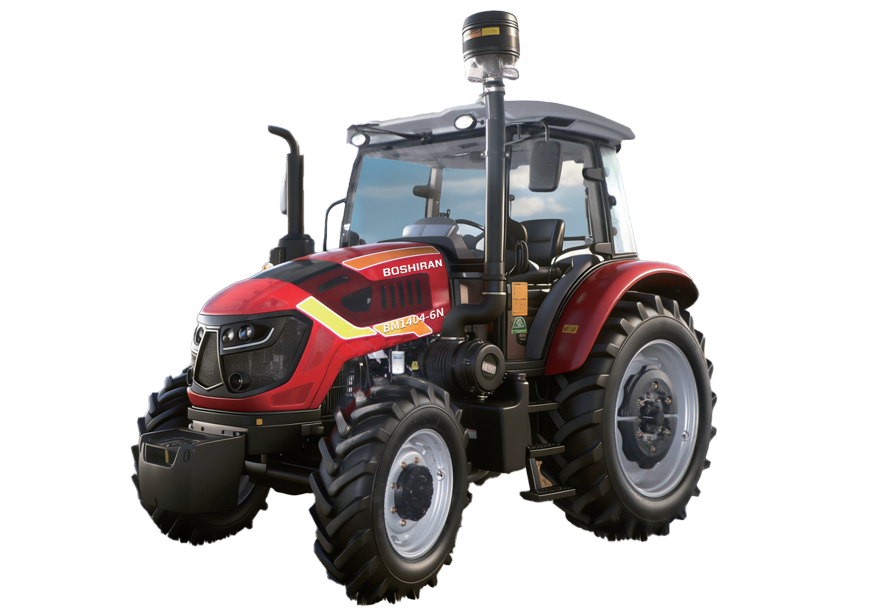

| Main Specifications | BM1404-6N |
| Drive Type | 4×4 Four-wheel drive |
| Engine Brand / Emission Standard | Yuchai National IV |
| Engine Model | YCA05160-T400 |
| Max Torque (N·m) / Speed (rpm) | 610 / 1300-1600 |
| No. of Cylinders / Displacement (L) | 4 / 4.837 |
| Fuel Tank Capacity (L) | Main tank 180 + Auxiliary tank 50 |
| Rated Power / Corresponding Speed (kW/rpm) | 103 / 2200 |
| Rated Power Fuel Consumption (g/kW·h) | ≤230 |
| Aspiration Method | Turbocharged & Intercooled |
| Air Filter | Dry-type air filter |
| Torque Reserve | 27% |
| Transmission System | |
| Clutch | Single plate, dry, dual-acting |
| Number of Gears | 16F+8R (Creeper gear / Micro-creeper optional) |
| Shift Method | Mechanical sliding mesh shift |
| Max Speed | 32.33 / 33.45 / 41.34 km/h (with standard rear tires) |
| Gear Layout | Side-mounted |
| Hydraulic System | |
| Hydraulic Output Flow | 55 L/min (at 2200 rpm) |
| Hydraulic Output Valve Groups | 2 groups / 3 groups optional |
| Working Device | |
| Three-point Linkage Category | Category 2 |
| PTO Speed | 540/760, 540/1000, 760/850, 760/1000 multiple options available |
| Lifting Capacity (at 610mm) | ≥23 kN (Boost mode) |
| Tillage Depth Control | Position control & Float control dual mode |
| Overall Machine Parameters | |
| Overall Dimensions (L×W×H) (mm) | 4500×2100×3100 mm (to top of air filter) |
| Min. Operating Mass (kg) | 4810 |
| Wheelbase (mm) | 2270 |
| Min. Turning Radius (m) | 4.4±0.3 |
| Rated Traction Force (kN) | 26.3 |
| Min. Ground Clearance (mm) | 420 (under front axle) |
| Air-conditioned Cabin | Optional |
| Heated Cabin | Optional |
| Front/Rear Wheel Track (mm) | 1610/1710/1750/1810/1850/1970 (commonly 1610) 1620/1720/1820/1920/2020 (commonly 1620, 1620-2020 adjustable) |
| Tire Specifications | "Standard tires: 11.2-24/16.9-34 (Std.), 11.2-28/16.9-38 (Opt.), 12.4-24/16.9-34 (Opt.), 13.6-24/16.9-34 (Opt.) Mid-lug tires: 12.4-24/16.9-34 (Opt.) Step Paddy tires: 11.2-24/13.6-38 (Opt.), 11.2-24/16.9-34 (Opt.), 12.4-28/16.9-34 (Opt.), 12.4-26/13.6-38 (Opt.) Step Standard tires: 11.2-24/16.9-34 (Std.), 12.4-24/16.9-34 (Opt.), 13.6-24/16.9-34 (Opt.) Stepless" |
| Brake & Steering | |
| Brake System | Wet, disc, hydrostatic actuated |
| Steering Type | Full hydraulic steering |
| 4WD Steering Angle | 45° (with standard tires) |
