Description

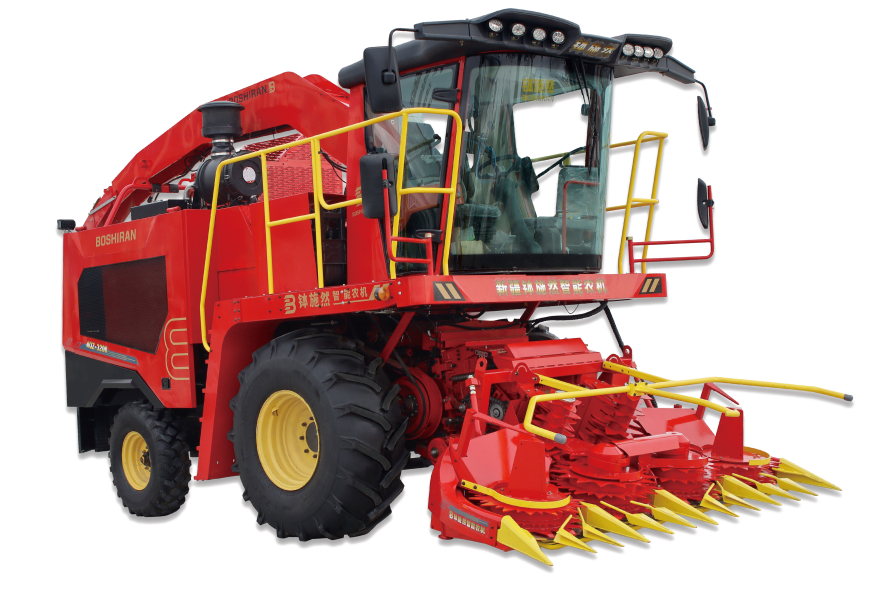

Boshiran’s newly launched 402-3200 Forage Harvester redefines efficiency in silage harvesting with its industry-leading 3200mm header, engineered to deliver unmatched versatility and precision.
Product Advantage
The chopping drum is equipped with 24 alloy moving blades, allowing controllable chopping length and convenient operation, with four gears for adjustment.
The cutting platform comes with a hydraulic reversing device, making it easy and quick to clear blockages when the platform is clogged.
The entire machine is equipped with an electro-hydraulic blade sharpening device, facilitating the sharpening of moving blades and reducing the workload of the operator.
The braking system adopts full hydraulic braking, which is reliable and safe, with a braking distance of ≤6 meters at 20km/h, meeting national safety standards.
Product Features
The chopping drum is equipped with 24 alloy moving blades, allowing controllable chopping length and convenient operation, with four gears for adjustment.
The cutting platform comes with a hydraulic reversing device, making it easy and quick to clear blockages when the platform is clogged.
The entire machine is equipped with an electro-hydraulic blade sharpening device, facilitating the sharpening of moving blades and reducing the workload of the operator.
The braking system adopts full hydraulic braking, which is reliable and safe, with a braking distance of ≤6 meters at 20km/h, meeting national safety standards.
The new National IV engine boasts 360 horsepower, comes with an engine back-blowing device for easy cleaning of radiator impurities, and features a power output transmission through a transfer case for convenience and efficiency.
The entire machine has good stability. When the machine needs emergency braking during high-speed transfer, there is no left-right swaying or deviation.
Product Video
Product Parameters
| Serial Number | Item | Unit | Parameters |
| 1 | Model Name | / | 4QZ-3200 |
| 2 | Type | / | Self-Propelled |
| 3 | Working State Dimensions | mm | 7100x3235x3650 |
| 4 | Rated power | Kw | 264(National IV) |
| 5 | Rated speed | / | 2100 |
| 6 | Cutting width | mm | 3200 |
| 7 | Model specification | / | L9CS4 360C |
| 8 | Header Cutter Type | / | Disc Cutter |
| 9 | Minimum Stubble Height | mm | ≤150 |
| 10 | Minimum Ground Clearance | mm | 330 |
| 11 | Straw Shredder Type | / | Rotary Cutter |
| 12 | Rotor Diameter | mm | 600 |
| 13 | Cab Type (Self-Propelled) | / | Standard Cab |
| 14 | Transmission Type (Self-Propelled) | / | Manual Transmission |
| 15 | Drive Type | / | Hydraulic Drive |
| 16 | Main Shaft Rated Speed | r/min | 1200 |
| 17 | Guide Wheel Track | mm | 1900 |
| 18 | Guide wheel tire specification | / | 12.00-18 |
| 19 | Drive wheel track | mm | 2115 |
| 20 | Drive wheel tire specification | / | 23.1-26 |
| 21 | Wheelbase | mm | 2500 |
| 22 | Operating speed range | Kw/h | 0-10 |
| 23 | Discharge chute height | mm | 4800-5700 |
