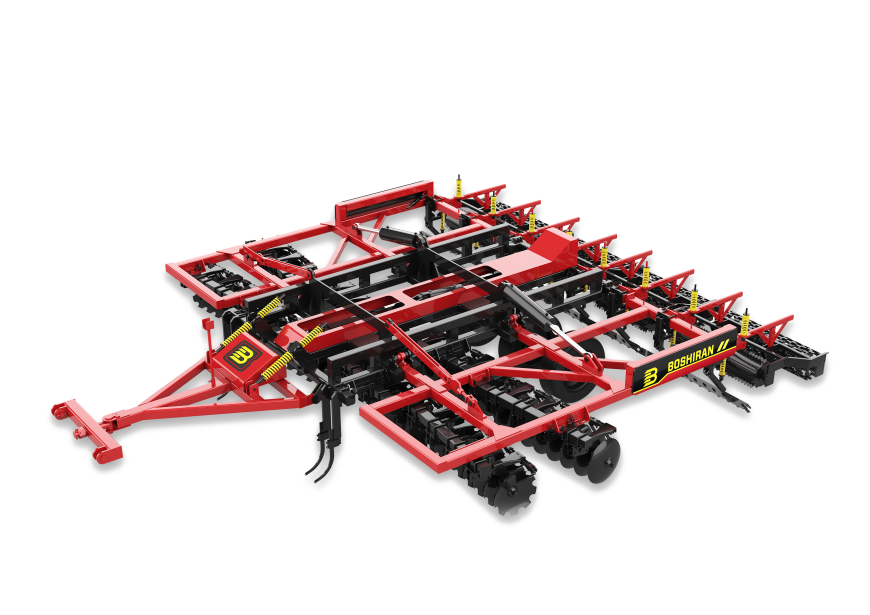

Boshiran 1ZFZ Series Folding Shunt-type Soil Preparation Machine

Boshiran Flow-Splitting Land Leveler

Incorporating state-of-the-art flow-splitting technology, this land leveler achieves unprecedented precision in soil management by stratifying and fractionally redistributing soil or ground materials into uniform layers, ensuring optimal field preparation for seeding or irrigation.

Next Product Download File

Product Advantage

Customizable Working Widths:

Adapts to tractor power (80-200 HP) and user requirements, offering suitable solutions for diverse field sizes.

Modular Components:

Includes a flow-splitting leveling frame, adjustable ground wheels, soil crusher roller, and compaction roller—minimizing complexity while maximizing durability.

Tilling Depth:

Adjustable from 0–13 cm to suit soil conditions.

Blade Angle:

Adjustable between 6–14° for optimal soil fracturing and leveling.

Product Features

- Customizable Working Widths: Adapts to tractor power (80-200 HP) and user requirements, offering suitable solutions for diverse field sizes.

- Modular Components: Includes a flow-splitting leveling frame, adjustable ground wheels, soil crusher roller, and compaction roller—minimizing complexity while maximizing durability.

- Tilling Depth: Adjustable from 0–13 cm to suit soil conditions.

- Blade Angle: Adjustable between 6–14° for optimal soil fracturing and leveling.

- Enhanced Speed: Achieves faster field coverage than conventional models due to reduced component friction and streamlined workflow.

- Minimalist Component Design: Fewer moving parts ensure lower maintenance and higher uptime.

- One-Piece Welded Frame: Eliminates weak points and reduces mechanical failures.

- Limited Rotating Parts: Only the soil crusher roller and compaction roller require periodic servicing.

Product Video

Product Parameters

Item		1ZFZ-4.0	1ZFZ-5.0	1ZFZ-6.0	1ZFZ-7.0
Working State Dimensions, mm	Length	8340	9722	9722	9277
	Width	4000	5000	6100	7100
	Height	1190	1380	1660	1660
Transportation status dimensions, mm	Length	8340	9722	9722	9700
	Width	2200	3050	3250	3250
	Height	2160	2257	2528	2940
Structural Type		Towed	Towed	Towed	Towed
Total Machine Weight，kg		3900	5100	5700	6200
Matching Power，kw		117.5-147.1	132.3-176.6	161.8-200.7	191.2-250.1
Number of folding cylinders		4	4	4	4
Model of folding cylinders		80/45-820/511	80/45-820/511	80/45-820/511	80/45-820/511
Working width，mm		4000	5000	6000	7000
Minimum transport clearance，mm		355	355	355	355
Number of lifting cylinders		110/60-580/310	110/60-580/310	110/60-580/310	110/60-580/310
Type of compaction mechanism		1	1	1	1
Number of compaction mechanisms		Roller	Roller	Roller	Roller
Type of soil breaking mechanism		3	4	4	6
Number of soil breaking mechanisms		Roller	Roller	Roller	Roller
Number of lifting cylinders		3	4	4	6
