Description

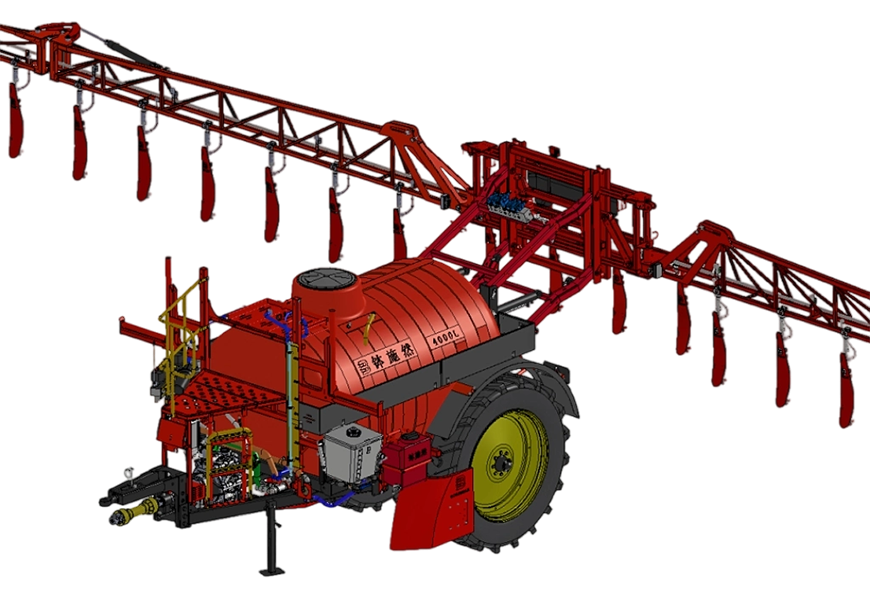

Xinjiang Boshan 3WPQ-4000 Tractor-Mounted 4-Ton Precision Boom Sprayer A high-efficiency, large-capacity crop protection solution independently developed by Boshan, engineered for precision and reliability in large-scale field spraying operations.
Product Advantage
Front-Mounted Crop Dividers:
Shields plants from mechanical damage during operation.
Shock-Absorbing Springs (canopy spray Nozzles):
Protects the spray boom from vibrations and impacts.
Diaphragm Pump:
Delivers stable pressure and continuous operation under heavy workloads.
High-Quality Nozzles:
Achieves fine atomization and flow uniformity for targeted chemical application.
Product Features
- 109 Spray Nozzles: Ensures uniform chemical distribution across large fields. 28 canopy spray Nozzles: Optimized for under-leaf and dense canopy penetration.
- Front-Mounted Crop Dividers: Shields plants from mechanical damage during operation.
- Shock-Absorbing Springs (canopy spray Nozzles): Protects the spray boom from vibrations and impacts.
- Diaphragm Pump: Delivers stable pressure and continuous operation under heavy workloads.
- High-Quality Nozzles: Achieves fine atomization and flow uniformity for targeted chemical application.
Product Video
Product Parameters
| Serial Number | Item | Unit | Parameters |
| 1 | Specifications and models | / | 3WPZ-4000 |
| 2 | Structural Form | / | Towed |
| 3 | Hydraulic type | / | Independent hydraulic |
| 4 | Medicine Box Volume | L | 4000 |
| 5 | Mixing Tank | L | 20 |
| 6 | Spray Boom Width | m | 21 |
| 7 | Spray Boom Height | m | 0.5-2.76 |
| 8 | Spray Boom Type | / | Frame Type |
| 9 | Spray Boom Lifting | / | Hydraulic Lifting |
| 10 | Spray Folding | / | Hydraulic Folding |
| 11 | Spray Head Type | / | M18x1.5 Internal Thread Adjustable Nozzle |
| 12 | Nozzle Spacing | mm | 190 |
| 13 | Number of nozzles | piece | 109 |
| 14 | Model | / | Diaphragm Pump |
| 15 | Matching power | Kw | 11 |
| 16 | Liquid pump flow rate | L/min | 360 |
| 17 | Rotation speed | r/min | 500-600 |
| 18 | Working pressure | Mpa | 2.5 |
| 19 | Mixing Method | / | High Pressure Recirculation Mixing |
| 20 | Filtration System | / | Four-Stage Filtration |
| 21 | Ground Clearance | mm | 950 |
| 22 | Variable Track | mm | 1500-2300 |
| 23 | Working speed | Kw/h | 4~10 |
| 24 | Transfer Speed | Kw/h | 30 |
| 25 | Overall dimensions (Length*Width*Height) | m | 5.8*3*3.1 |
| 26 | Blower | piece | 2 |
| 27 | Drive Type | / | Hydraulic motor |
| 28 | Cooling type | / | Oil cooling |
| 29 | Ventilation type | / | Dual duct |
| 30 | Machine weight (unloaded) | Kg | 1650 |
