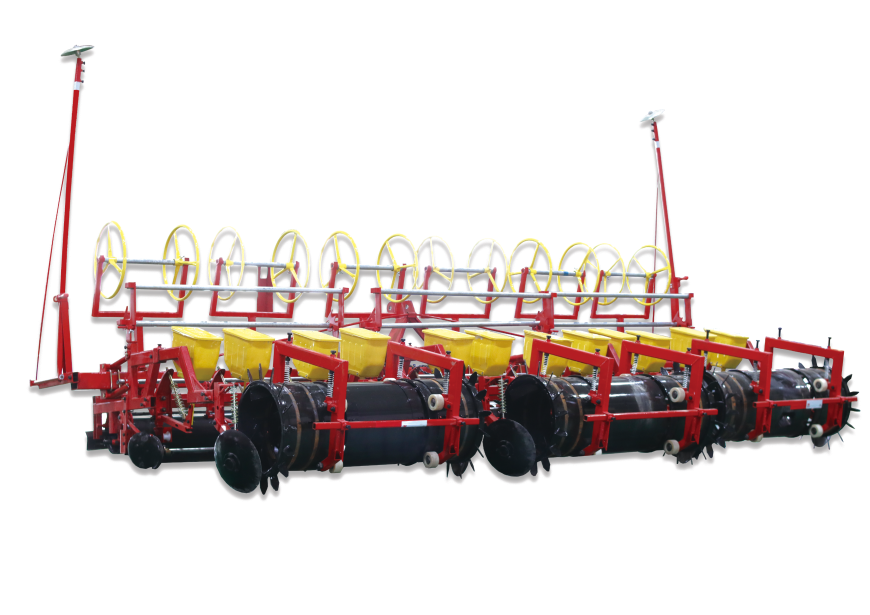

Boshiran 2MBJ Series Corn Film Planter Introduction

Independently developed and manufactured by Xinjiang Boshan, this planter revolutionizes precision agriculture by integrating four critical processes—soil leveling and compaction, drip tape laying, film mulching with soil covering, and precision seeding through film—into a single-pass operation, achieving unparalleled efficiency and crop establishment accuracy.

Next Product Download File

Product Advantage

The film-unrolling roller bearing seat employs a patented new design with a conical shape, which can effectively reduce the shifting of the mulching film during the film-laying operation.

The high-quality hole seeder features high seeding accuracy and minimal missed or repeated seeding.

The soil-covering drum is designed reasonably to ensure even soil coverage.

The bulldozing plate can effectively remove debris from the soil surface, creating favorable conditions for seeding.

Product Features

The film-unrolling roller bearing seat employs a patented new design with a conical shape, which can effectively reduce the shifting of the mulching film during the film-laying operation.

The high-quality hole seeder features high seeding accuracy and minimal missed or repeated seeding.

The soil-covering drum is designed reasonably to ensure even soil coverage.

The bulldozing plate can effectively remove debris from the soil surface, creating favorable conditions for seeding.

The entire machine adopts a frame structure, making it stable, durable, and lightweight.

The seed box also uses a newly designed integral seed box with a larger space, capable of storing more seeds. The structural design is reasonable, improving seeding efficiency.

Product Video

Product Parameters

Serial Number	Item	Unit	Parameters
1	Model Name	/	2MBJ-2/42MBJ-2/4 Film Mulching Planter	2MBJ-3/62MBJ-3/6 Film Mulching Planter	2MBJ-4/82MBJ-4/8 Film Mulching Planter
2	Complete Machine Part Number	/	5234.00	5326.00	5348
3	Structural Form (Mounting Method)	/	Three-Point Rear Hitch	Three-Point Rear Hitch	Three-Point Rear Hitch
4	Matching Power Range	Kw	22~55	25~55	40~55
5	Overall Dimensions (Length x Width x Height)	mm	2900X2250X1440	2900X3200X1440	2900X4200X1550
6	Number of rows		4	6	8
7	Row spacing	mm	350~450Single Film 350~450 Adjustable	350~450Single Film 350~450 Adjustable	350~450Single Film 350~450 Adjustable
8	Adaptable Film Width	mm	750	750	750
9	Type of Seed Meter	/	Seed Spoon/Clip Type	Seed Spoon/Clip Type	Seed Spoon/Clip Type
10	Number of Seed Meters		4	6	8
11	Covering Device Type	/	Roller/Rated Body	Roller/Rated Body	Roller/Rated Body
12	Number of drip irrigation pipe (tape) frames		2	3	4
13	Seed Box Capacity	L	30	45	60
14	Operating speed range	Km/m	3.5~4.0	3.5~4.0	3.5~4.0
15	Seeding Transmission Mode	/	Natural Opening	Natural Opening	Natural Opening
