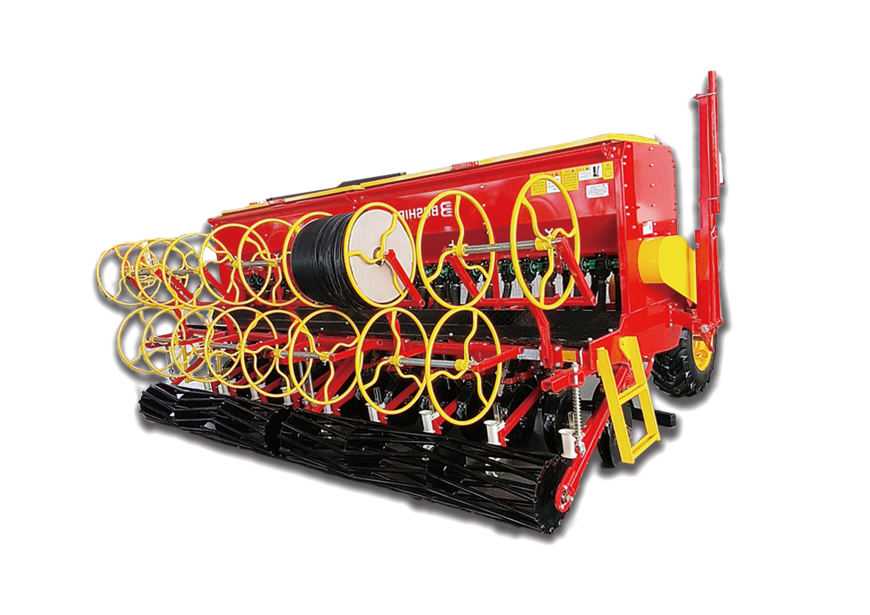

Boshiran 2BFX-20/25/28 Series Fertilization Seeder

Boshiran’s newly launched 2BFX series redefines precision farming by integrating multiple critical functions—fertilization, seeding, soil compaction, and drip tape laying—into a single-pass operation, significantly reducing labor, time, and fuel costs for modern agricultural operations.

Next Product Download File

Product Advantage

The soil coverer adopts a four-bar linkage structure, and the soil covering square tube moves up and down in parallel, providing better passage and more even soil covering.

The V-shaped design of the compaction wheel adopts the most scientific V-shaped design. During the soil covering process, it evenly compresses the soil ridges, making the soil finer and the ground flatter.

The drip irrigation belt with a retainer ring design - the double-row drip irrigation belt with a retainer ring design saves time costs and improves work efficiency during operation.

Product Features

The soil coverer adopts a four-bar linkage structure, and the soil covering square tube moves up and down in parallel, providing better passage and more even soil covering.

The drip irrigation belt with a retainer ring design - the double-row drip irrigation belt with a retainer ring design saves time costs and improves work efficiency during operation.

Product Video

Product Parameters

Serial Number	Item	Unit	Parameters
1	Model Name	/	2BFX-202BFX-20 Fertilizer Seeder	2BFX-252BFX-25 Fertilizer Seeder	2BFX-282BFX-28 Fertilizer Seeder
2	Structural Type	/	Mechanical; Mounted	Mechanical; Mounted	Mechanical; Mounted
3	Matching Power Range	Kw	40-60	55-74	59-81
4	Overall Dimensions of Land Preparation	mm	1900x3240x2100	2240x3900x2100	2240x4500x2100
5	Operating speed range	m/s	1.11-1.67(4-6KM/h)	1.11-1.67(4-6KM/h)	1.11-1.67(4-6KM/h)
6	Hourly Work Efficiency	h㎡/h	1.2-1.8(18-27/Mu/Hour)	1.5-2.25(22.5-33.8/Mu/Hour)	1.68-2.52(25.2-37.8/Mu/Hour)
7	Working Width	cm	300	360	420
8	Row spacing	cm	15	15	15
9	Number of Working Rows	row	20	25	28
10	Type of Seed Meter	/	Fluted Wheel, Non-Metallic Material	Fluted Wheel, Non-Metallic Material	Fluted Wheel, Non-Metallic Material
11	Number of Seed Meters	piece	20	25	28
12	Fertilizer Applicator Type	/	Fluted Wheel, Non-Metallic Material	Fluted Wheel, Non-Metallic Material	Fluted Wheel, Non-Metallic Material
13	Number of Fertilizer Applicators	piece	20	25	28
14	Seed Furrow Opener Type	/	Double Disc	Double Disc	Double Disc
15	Number of Seed Furrow Openers	piece	20	25	28
16	Depth Adjustment Range of Seed Furrow Openers	mm	30-80	30-80	30-80
17	Fertilizer Furrow Opener Type	/	Double Disc	Double Disc	Double Disc
18	Number of Fertilizer Furrow Openers		20	25	28
19	Depth Adjustment Range of Fertilizer Furrow Openers	mm	30-80	30-80	30-80
20	/Seed/Fertilizer Box Volume Single Seed Box Volume	L	325/350；525	430/410；610	475/502；702
21	Discharge Adjustment Method	/	Adjustment Handle	Adjustment Handle	Adjustment Handle
22	Transmission Method of Seeding Section	/	Chain Drive	Chain Drive	Chain Drive
23	Wheel Type	/	Pneumatic Rubber Tire	Pneumatic Rubber Tire	Pneumatic Rubber Tire
24	Seeding Rate	Kg/hm	12-640(0.8-42/kg/mu)	11-590(0.7-39/kg/mu)	11-590(0.7-39/kg/mu)
25	Fertilizer Application Rate	Kg/hm	40-400(2.7-27/kg/mu)	36.9-369(2.5-25/kg/mu	36.9-369(2.5-25/kg/mu)
