Description

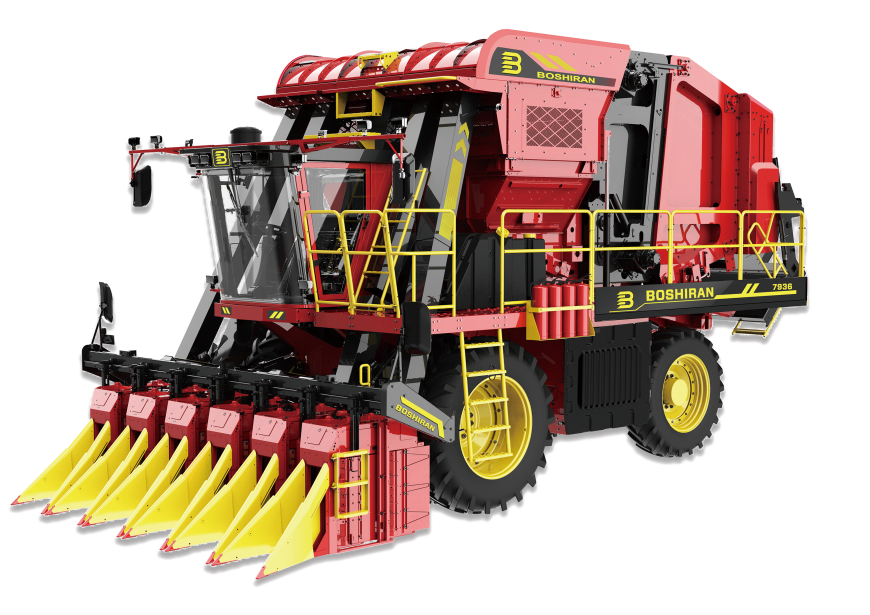

Developed and manufactured through proprietary innovation by Xinjiang Boshiran, this 6-row harvester leverages decades of technical expertise to deliver industry-leading performance and unrivaled reliability. It seamlessly integrates five critical functions—cotton picking, conveying, chamber storage, baling, and automated discharge-into a single continuous workflow, eliminating operational bottlenecks for large-scale farming efficiency.to maintain, and have a high picking rate, suitable for use in large-scale cotton planting areas.
Product Advantage
Fully Digital Control Interface:
Enables precise, flexible adjustments via user-friendly touchscreen controls.
Ergonomic Dynamic Operator Platform:
Adjusts intuitively to operator movements, reducing fatigue during long shifts.
Operator-Centric Innovations HD Panoramic Camera System:
Provides 360° real-time monitoring for enhanced safety and situational awareness.
Non-Stop Baling System
Non-Stop Baling System Eliminates operational pauses during bale transitions, optimizing fuel efficiency and field productivity.
Product Features
Fully Digital Control Interface: Enables precise, flexible adjustments via user-friendly touchscreen controls.
Ergonomic Dynamic Operator Platform: Adjusts intuitively to operator movements, reducing fatigue during long shifts.
Operator-Centric Innovations HD Panoramic Camera System: Provides 360° real-time monitoring for enhanced safety and situational awareness.
Non-Stop Baling System Eliminates operational pauses during bale transitions, optimizing fuel efficiency and field productivity.
Independent Dual Hydraulic Fans Generate powerful, consistent airflow with stable transmission for optimal performance.
Radial-Ply Tubeless Tires Front & Rear Wheels: Feature puncture-resistant construction and superior load-bearing capacity for extended durability, higher load-bearing capacity.
Hydraulic Motor-Driven Picking Head: Delivers reliable performance, smooth operation, and reduced noise levels for uninterrupted harvesting.
4WD High-Strength Rear Axle: Adaptable to diverse soil conditions (clay, loam, sandy terrain) while enhancing stability during high-load operations.
High-Quality Folding Access Ladder: Ensures safe, convenient access for maintenance and inspections.
Product Video
Product Parameters
| Serial Number | Item | Unit | Parameters | ||
| 1 | Model | / | 4MZD-6C | 4MZD-6D | |
| 2 | Number of Picking Rows | row | 6 | ||
| 3 | Suitable Picking Row Spacing | Cm | 76（66+10/68+8） | ||
| 4 | Vehicle Weight | t | 32 | ||
| 5 | Vehicle body dimensions | mm | Work,10460x5310x5270，Transportation12480x5310x4380 | ||
| 6 | Cotton Box Volume | m³ | 9 | ||
| 7 | Drive Type | / | Four-wheel drive | ||
| 8 | Travel Control | / | Full hydraulic continuously variable transmission | ||
| 9 | Fuel Tank | L | 1051 | ||
| 10 | Washing Fluid Tank | L | 1168 | ||
| 11 | Grease Box | L | 100 | ||
| 12 | Hydraulic Oil Tank | L | 289 | ||
| 13 | Hydraulic system | / | Danvers | ||
| 14 | Bale Size | m（Diameter） | Automatic Packing：1.05-2.28 Manual Packing：0.5~2.28 | ||
| 15 | Engine Power | Kw | 765/563Cummins | 775/570Yuchai | |
| 16 | Wheelbase | m | 4.4 | ||
| 17 | Inner Wheel Center Distance | m | 2.28 | ||
| 18 | Outer Wheel Center Distance | m | 3.8 | ||
| 19 | Front Wheel/Rear Wheel | / | IF520/85 R42/IF580/80 R34 | ||
| 20 | Number of Drums | Piece | 6x2（12） | ||
| 21 | Seat Tube Assembly Quantity | Piece | 168（6x2+6x16） | ||
| 22 | Spindle Quantity | Piece | 3024（168x18） | ||
| 23 | Harvesting at 1st gear/2nd gear, Road at 3rd gear | Km/h | 0-6.8/0-8.1/0-23 | ||
| 24 | Minimum turning radius | m | 3.96 | ||
| 25 | Pure Working Hour Productivity | Mu | 26-35 | ||
Notes:
1. Working state refers to the actual operating state of the prototype on a flat and hardened test site (with the cotton packing device of the cotton harvesting machine closed).
2. Items not applicable to the product are marked with "/" in the design value column.
3. Transport state refers to the actual transport state of the prototype with the working mechanism retracted.
