Description

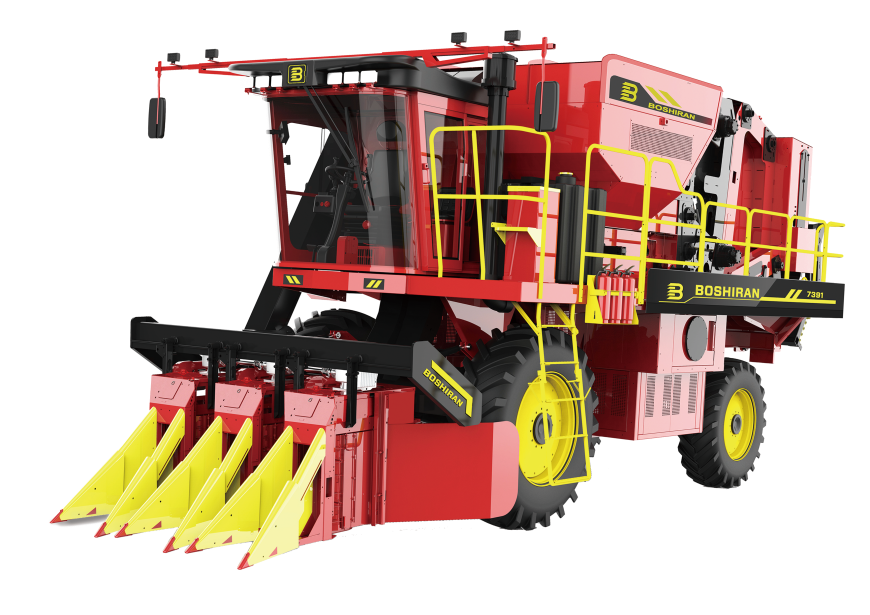

Boshiran 3-Row Baling Cotton Harvester combines the proven advantages of the company's basket-type harvesters-exceptionally high picking efficiency and minimal debris retention-with innovative design upgrades. Its modular, non-disassembly structure ensures seamless operation and transport readiness, while its compact, agile footprints optimized for small-scale fields, delivering unmatched versatility and productivity.
Product Advantage
High-Speed Picking Head:
Enhances harvesting throughput while maintaining precision and minimalfiber damage.
Self-Developed Electronic Control System:
Features intuitive operation and logic protection protocols, safeguarding against operational errors.
Non-Stop Baling Technology:
Eliminates downtime during bale transitions, maximizing operationaluptime.
20-Ton Integrated High-Strength Rear Axle:
Engineered for exceptional load-bearing capacity, ensuring durability across diverse soil conditions-excelling in sandy terrains.
Product Features
High-Speed Picking Head: Enhances harvesting throughput while maintaining precision and minimalfiber damage.
Self-Developed Electronic Control System: Features intuitive operation and logic protection protocols, safeguarding against operational errors.
Non-Stop Baling Technology: Eliminates downtime during bale transitions, maximizing operationaluptime.
20-Ton Integrated High-Strength Rear Axle: Engineered for exceptional load-bearing capacity, ensuring durability across diverse soil
conditions-excelling in sandy terrains.
Fully Hydraulic Drive System: Delivers reliable performance, smooth operation, and reduced noise levels for enhanced operator comfort.
Product Video
Product Parameters
| Serial No. | Item | Unit | Parameters/Specifications |
| 1 | Model Name | / | 4MZD-3A Self Propelled Cotton Picker with Baler |
| 2 | Structural Type | / | Self-Propelled |
| 3 | Matching Power Rated Power | kW | 242 |
| 4 | Matching Power Rated Speed | rpm | 2100 |
| 5 | Pure Working Hour Productivity | hm | 0.5~1 |
| 6 | Working state dimensions (L×W×H) | mm | 9580×3800×4300 |
| 7 | Transport state dimensions (L×W×H) | mm | 9580×3800×4300 |
| 8 | Total Machine Weight | kg | 21500 |
| 9 | Number of rows | Row | 3 |
| 10 | Cotton picker head structure type | / | Horizontal spindle type |
| 11 | Number of picking drums | Unit | 6 |
| 12 | Number of spindle bars per drum | Unit | Front: 16; Rear: 12 |
| 13 | Number of spindles per spindle bar | Unit | 18 |
| 14 | Number of spindles per picker head | Unit | 504/432 |
| 15 | Number of doffing discs | Unit | 108 |
| 16 | Fan Speed | rpm | 3900 |
| 17 | Adaptable row spacing | mm | 760 (Applicable planting mode 660+100, 680+80) |
| 18 | Minimum ball height for picking | mm | 150 |
| 19 | Harvesting Speed I | km/h | 0-5.8 |
| 20 | Harvesting Speed II | km/h | 0-6.2 |
| 21 | Cotton Bale Diameter | mm | 500~1500 |
| 22 | Cotton Bale Weight | kg | 800~1200 |
Notes:
1. Working state refers to the actual operating state of the prototype on a flat and hardened test site (with the cotton packing device closed).
2. Items not applicable are marked with "/".
3. Transport state refers to the prototype with working mechanism retracted.
